Data Centre Roof Design: How to Balance Performance, Resilience and Sustainability

Data centres place exceptionally demanding requirements on every part of the building envelope. With critical infrastructure and sensitive equipment to protect, the flat roof needs to deliver much more than your standard waterproofing.

For developers and contractors, data centre roof design needs to consider resilience, durability, fire performance, thermal performance, drainage, maintenance and long-term asset performance from the outset.

At the same time, as the environmental impact of data centre development comes under increasing scrutiny, there is a growing need to consider how every element of the building can contribute to improved sustainability.

The roof is no exception. While it cannot address the environmental impact of a data centre on its own, thoughtful roof design can contribute to a more efficient and environmentally responsible building through measures such as improved thermal performance, renewable energy generation, biodiversity and sustainable water management.

1. Waterproofing and resilience

The fundamental requirement of any data centre roof is to protect the building and its critical infrastructure from water ingress.

Data centre roofing systems need to provide reliable, long-term waterproofing while accommodating the complex layouts often associated with these facilities.

This can include:

• Extensive areas of plant and mechanical equipment
• Service penetrations and interfaces
• Roof access requirements
• Complex drainage arrangements
• Changes in roof level
• PV installations
• Green, blue and biosolar roof areas

Getting these interfaces right is particularly important. Early consideration of roof design, detailing and buildability can help reduce potential vulnerabilities before construction begins.

Axter works with project teams from concept and feasibility through to detailed design and construction, providing technical input including roof design, wind loading assessments, thermal calculations and drainage design.

2. FM Approved roofing systems

For mission-critical buildings, independently tested performance can provide an important additional level of assurance.

Axter offers a range of roofing and waterproofing systems incorporating components and assemblies with FM Approvals. Axter's Excel® FM range includes mechanically fixed warm roof build-ups, including single-layer and flame-free configurations, designed for large-span structures and projects where naked flame is prohibited.

FM Approvals is an internationally recognised testing and certification body focused on property loss prevention.

FM Approved assemblies undergo extensive testing to assess their performance against risks including wind uplift, fire exposure and hail resistance.

The appropriate specification will depend on the building, roof construction and project requirements, but certification can form an important part of the risk management approach for critical infrastructure.

3. Thermal performance and energy efficiency

The roof has an important role to play in the thermal performance and energy efficiency of a data centre.

Selecting the appropriate combination of waterproofing, insulation and roof construction can help the building meet its required thermal performance while supporting wider energy efficiency objectives.

For project teams, this means considering the roof build-up early enough for insulation thickness, U-values, falls and interfaces to be properly coordinated with the wider building design.

Improving the thermal performance of the building envelope can help reduce heat loss and support more efficient operation over the building's lifetime. While the roof is only one part of the overall energy strategy, getting its performance right (and getting it right early) can make a meaningful contribution to the building's wider efficiency.

Axter's technical and in-house design team can support projects with U-value calculations and tapered insulation design, helping project teams develop roof build-ups appropriate to the specific requirements of the facility.

4. Designing around complex plant and services

Data centre roofs are very rarely simple.

Mechanical and electrical services, cooling equipment, access routes and other infrastructure can create a highly populated roofscape, with numerous penetrations and interfaces requiring careful detailing.

A successful data centre roof design therefore needs to consider more than just the waterproofing membrane itself.

The relationship between waterproofing, insulation, drainage, plant supports, penetrations and other building elements should be considered as part of an integrated roof design.

Early technical design involvement can help identify potential interface issues, improve buildability and reduce the likelihood of problems emerging during construction.

5. Drainage and resilience to extreme weather

Rainwater management is another important consideration for large flat roofs.

As rainfall patterns and surface water management requirements evolve, designing effective drainage should form part of the wider roof strategy.

Blue roof systems can provide one approach by attenuating rainwater within the roof build-up and releasing it at a controlled rate. This can help manage peak flows and integrate the roof with the site's wider drainage strategy and flood risk assessment.

For data centre developments, where large roof areas can generate significant volumes of surface water, early consideration of drainage can be particularly valuable.

6. How can the roof contribute to a more sustainable data centre?

Data centres have an important role in modern digital infrastructure, but their environmental impact means sustainability needs to be considered across the development as a whole.

The roof cannot solve these challenges on its own. However, it can contribute to the building's wider sustainability and resilience objectives by combining its primary waterproofing function with measures that support energy generation, biodiversity, thermal performance and water management.

Depending on the building and project objectives, these can include:

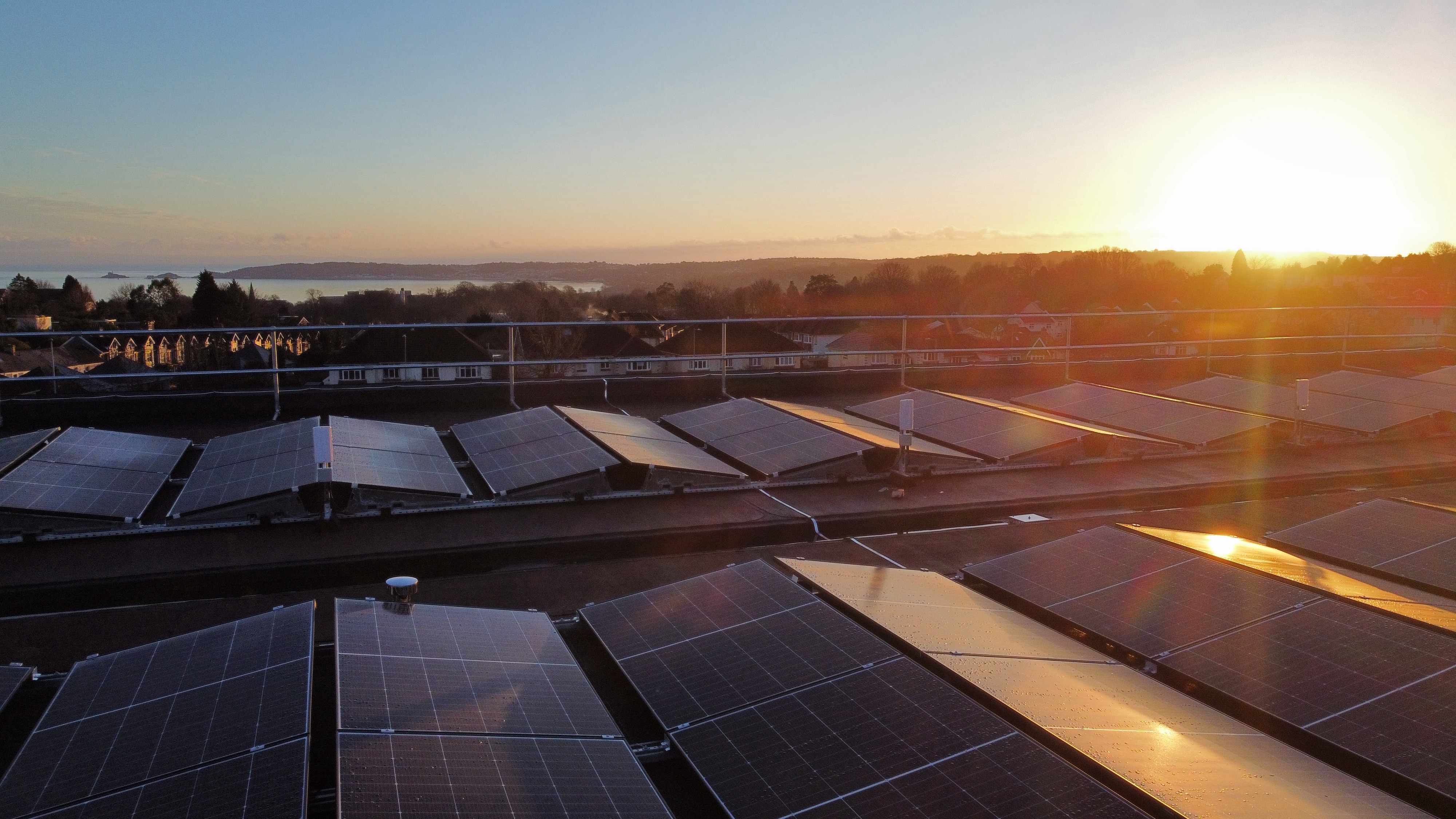

Solar PV

Large areas of flat roof can provide space for photovoltaic installations, allowing otherwise underutilised roof area to contribute towards on-site renewable energy generation.

The feasibility of Solar PV needs to be considered alongside structural loading, roof build-up, access, maintenance and waterproofing requirements. When properly integrated into the roof design, solar generation can help the building make better use of its available space while supporting wider renewable energy objectives.

Biosolar roofs

A biosolar roof combines photovoltaic generation with a living roof system.

Rather than treating renewable energy generation and biodiversity as competing uses of the same roof area, a biosolar approach can allow them to work together.

Axter's Biosolar PV system combines a crystalline solar array with a biodiverse living roof, providing an example of how the roof can contribute to both renewable energy generation and ecological value.

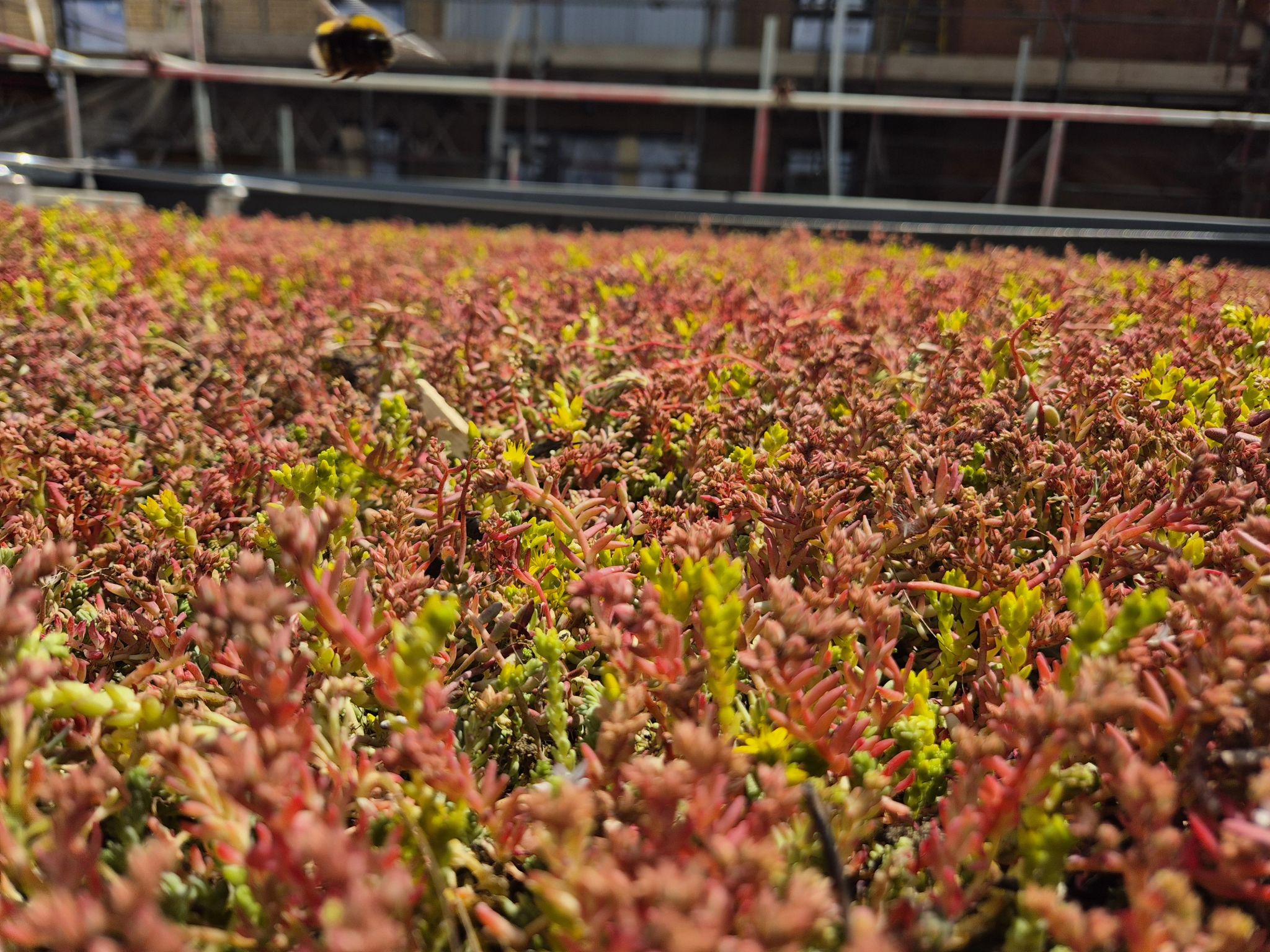

Green and biodiverse roofs

Green and biodiverse roofs can provide environmental benefits including habitat creation and improved biodiversity.

They can also contribute to the building's wider approach to sustainable drainage and rainfall management, depending on the system design and site requirements.

Blue roofs

Blue roofs are designed to temporarily store and attenuate rainwater, controlling the rate at which water leaves the roof.

For developments with significant roof areas, this can form part of a broader sustainable drainage strategy, helping manage surface water while contributing to the building's resilience to increasingly challenging rainfall events.

Whole-life performance

Sustainability is also about how long the roof performs and the resources required to maintain it.

A durable waterproofing system designed for long-term performance can help reduce the need for premature repair or replacement, along with the associated materials, waste, disruption and cost.

This is why lifecycle considerations should form part of the decision-making process when selecting a data centre roofing system.

That means considering durability, maintenance, repairability, compatibility with future technologies and the consequences of potential failure alongside initial cost.

Taken together, these measures demonstrate how the roof can become an active part of the building's sustainability strategy, rather than simply a protective layer above it.

Designing the roof as part of a better-performing building

The most effective data centre roof design considers the roof as part of the wider building rather than as an isolated component.

Waterproofing, thermal performance, drainage, renewable energy, biodiversity, durability and maintenance all have a role to play in determining how a roof performs throughout the life of the asset.

For developers and design teams, this creates an opportunity to use the roof to address multiple objectives at once: protecting critical infrastructure, improving building efficiency, managing environmental risks and supporting wider sustainability goals.
