Marrtree Business Park

Location:
Bradford
Client:
Woodfellows Building Consultancy
Sector:
Commercial

Axter systems used

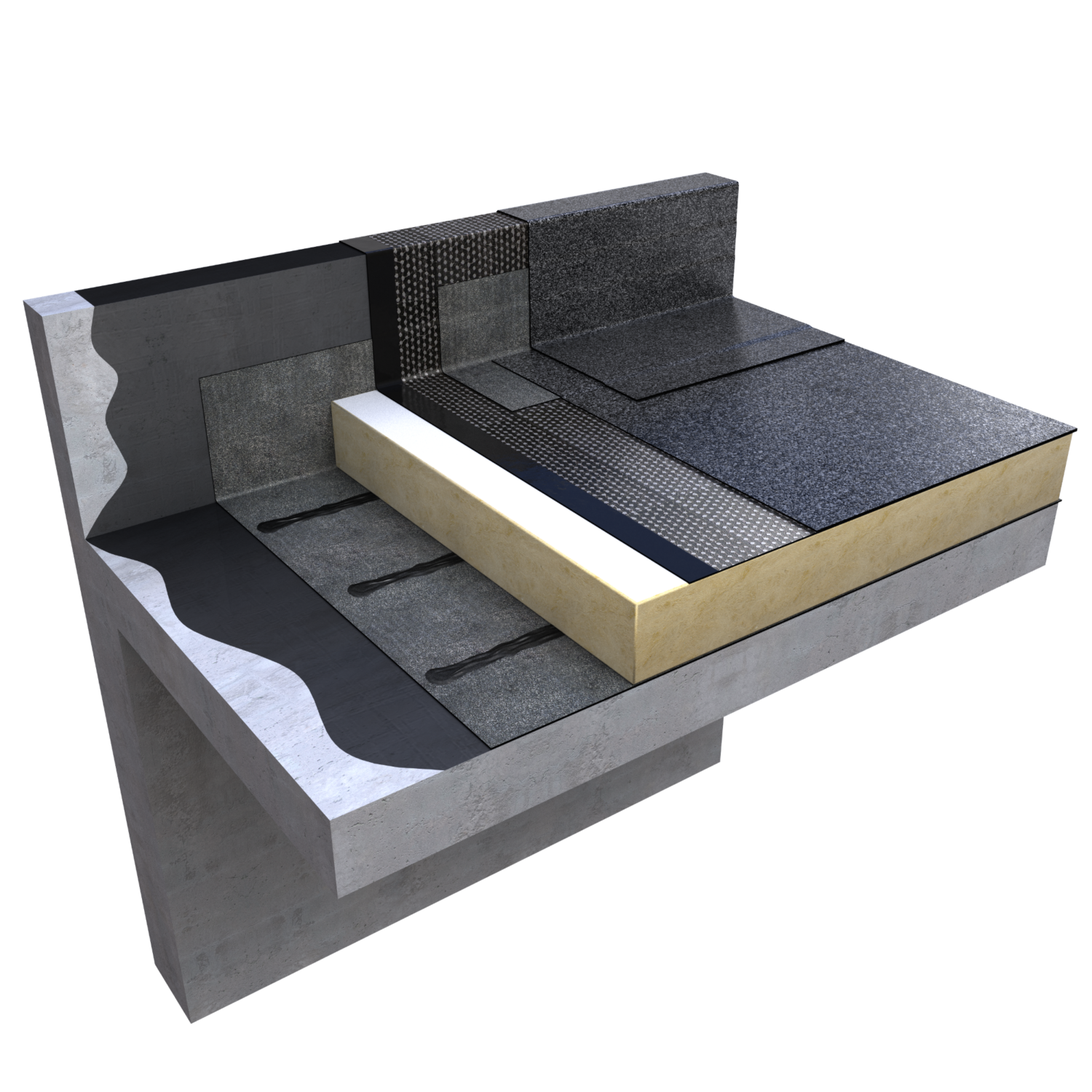

Force®

A superior range of high performance SBS polymer modified reinforced bitumen membranes. Engineered to guarantee durability, Force self protected systems have exceptional ageing characteristics and a proven track record of excellent performance.

Learn more

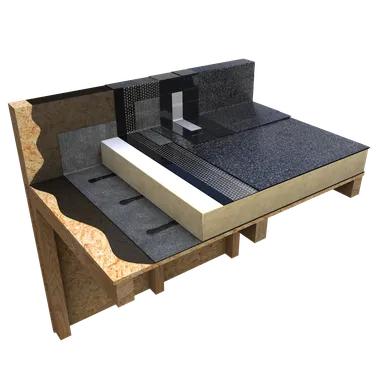

Starcoat® R

Reliable and ready to use, Starcoat R is a unique, single component polyurethane bitumen resin, with integrated anti-root protection.

Learn more

Overview

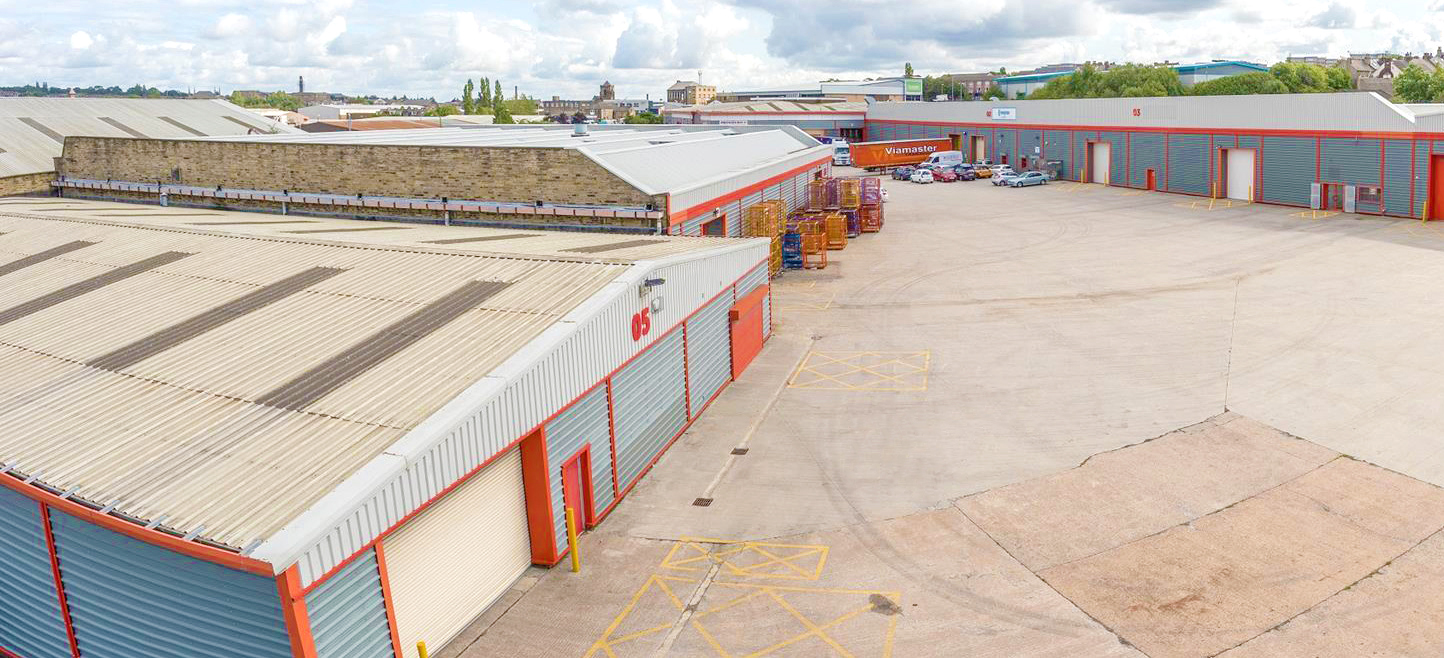

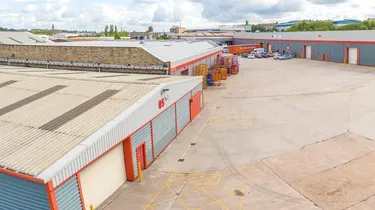

Marrtree Business Park is a large warehouse estate, mostly made up of single storey industrial/warehouse units. A refurbishment of their roof was needed as part of a wider development, including full renovation of the office suite, new LED warehouse lighting and electrical installation.

Challenges

One significant challenge for this project was that the roof did not comply with current Part L building regulations and needed thermally upgrading as part of the building refurbishment works. There were also combustibility issues with the metal cladding to the perimeter of the flat roof area. Not only this, severe ponding water and delamination of the existing membrane meant poor drainage falls across the roof area.

Access was also a challenge for this survey, with a scaffold having to be erected before the final roof condition report could be conducted, so time and turnaround was key to lessening additional costs for the building owner. Axter were able to conduct the survey and get recommendations and specifications to the main contractor and client within a 48 hour window, allowing the scaffold to remain in situ in preparation for works to commence as soon as possible.

Solutions

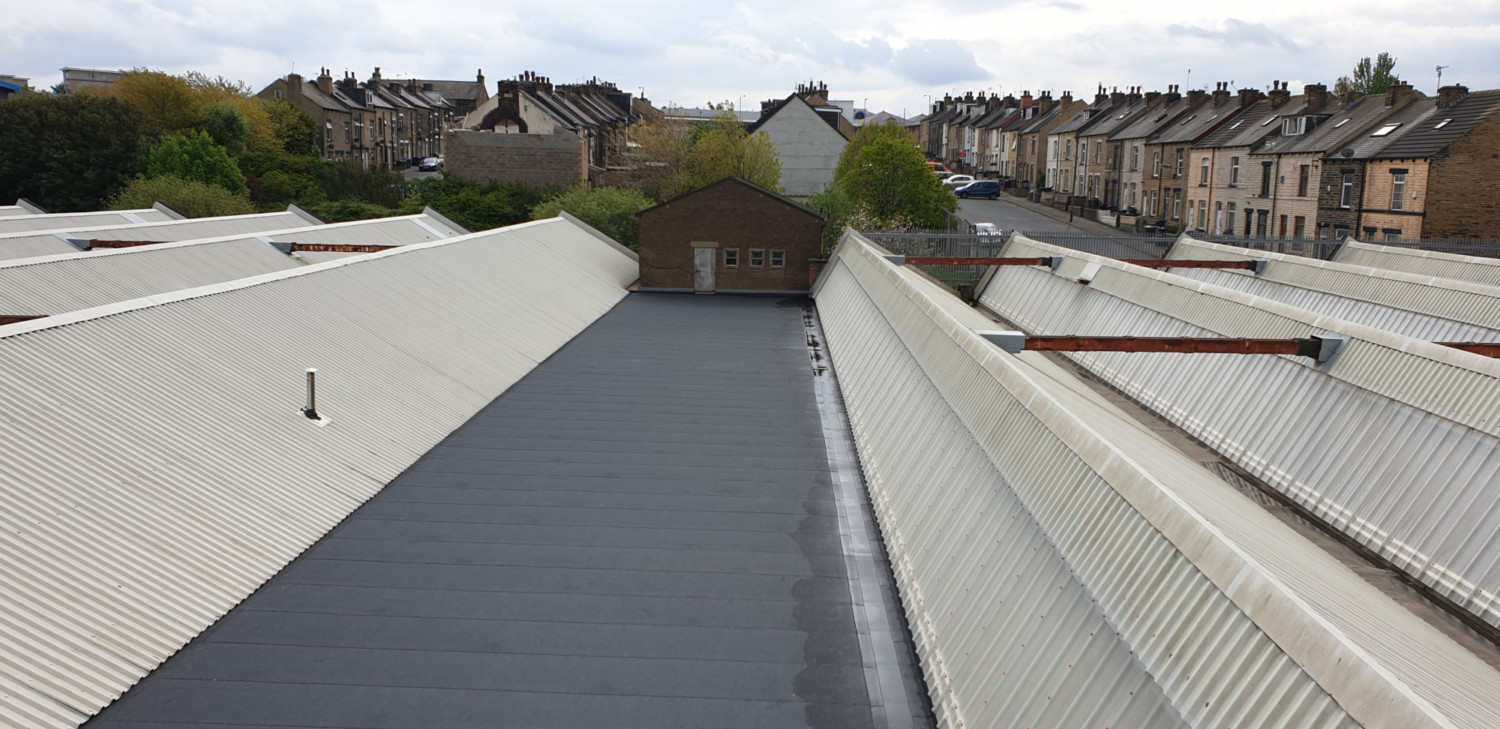

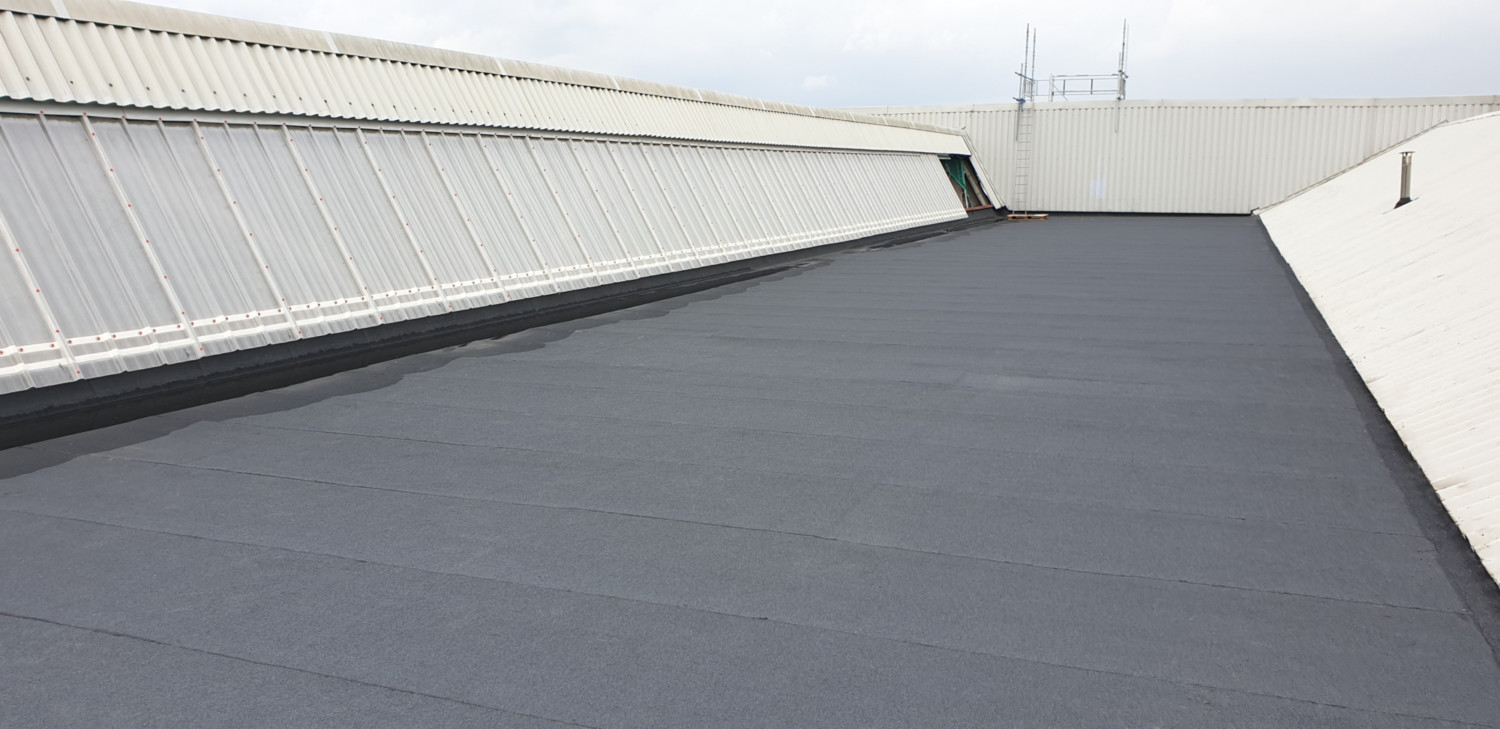

As the existing waterproofing was beyond repair, we recommended that it be completely stripped back to the metal substrate. In its place, the Force reinforced bitumen system was installed, which was idea due to its durability, flexibility and exceptional ageing characteristics.

The system incorporated Hytherm ADH Tapered Insulation following on from a level survey to improve falls and upgrade the thermal performance of the building in line with current regulations.

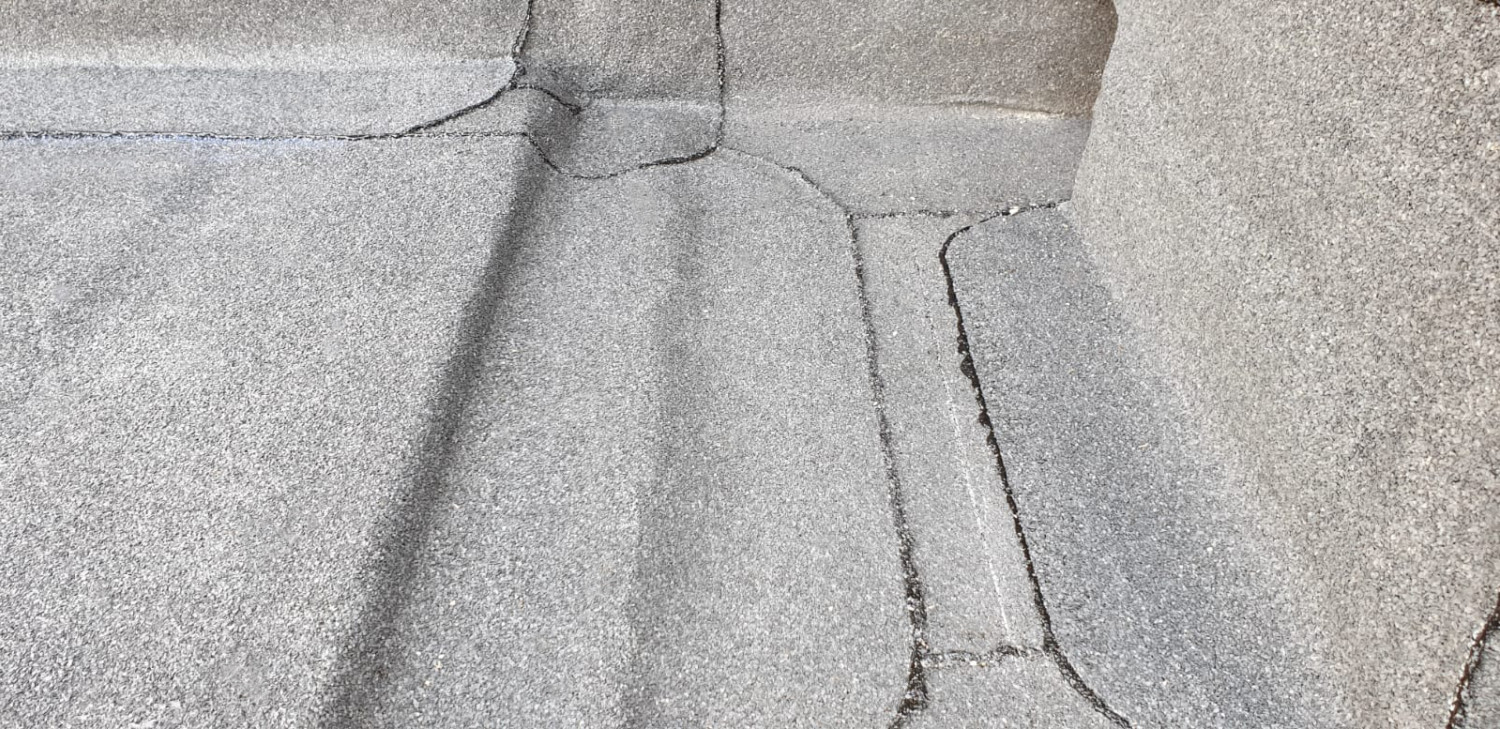

Axter’s Starcoat R cold liquid bitumen PU resin was employed to mitigate any potential fire risk to details, in line with the NFRC’s Safe2Torch guidance. A charcoal granule finish was added to this in order to maintain continuity of the RBM membrane aesthetic.
